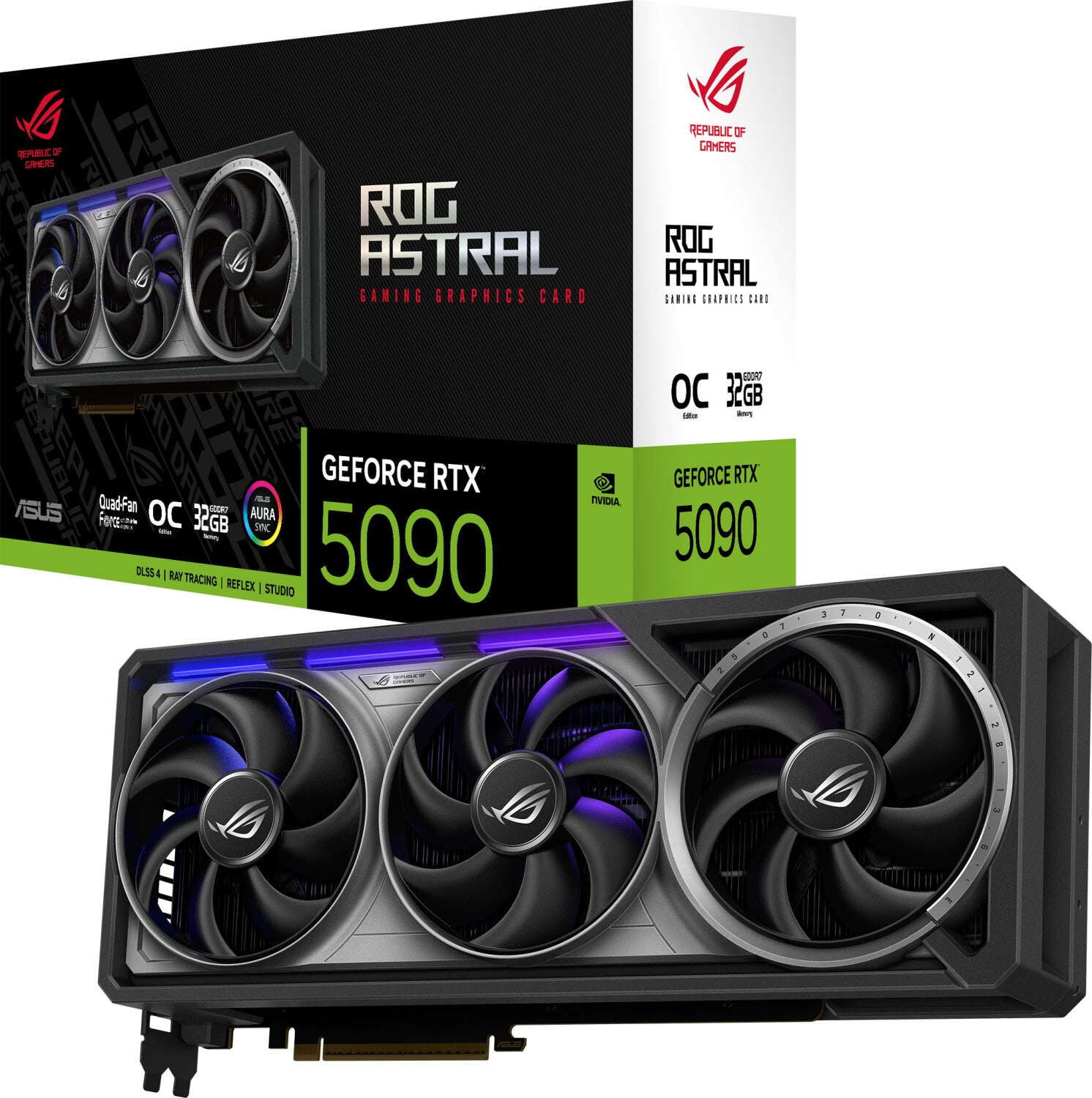

ASUS GeForce RTX 5090 ROG Astral OC
€3.757,00 EUR
Skip to product information
ASUS GeForce RTX 5090 ROG Astral OC
€3.757,00 EUR
Gaming Graphics Card, NVIDIA GeForce RTX 5090, 21,760 Shader Units, 2,610 MHz, overclocked, 32 GB, GDDR7, 512 Bit, 28 Gbit/s Memory Clock, 3.8 Slots, active cooling, DirectX 12.2, PCIe 5.0 x16, 3x Display Port, 2x HDMI, DLSS Upscaling, G-Sync, Ray Tracing, Dual Bios, 575 W
general
| Product Type | Gaming Graphics Card |
| Series | NVIDIA GeForce RTX 5090 |
| Power Consumption (TDP) | 575 W |
| Dual Bios | yes |
| Color | black |
Graphics Chip
| Chipset Manufacturer | NVIDIA |
| Chipset Codename | Blackwell |
| Chipset Series | NVIDIA GB202 |
| Shader Units | 21,760 |
| Ray Tracing Units | 170 |
| AI Units | 680 |
| Base Clock | 2,017 MHz |
| Boost Clock | 2,610 MHz |
| Overclocked | yes |
| Manufacturing Process | 5 nm |
| L2 Cache | 88 MB |
| Chipset Features | CUDA, AV1 Encoder, NVIDIA Freestyle, AV1 Decoder, NVIDIA Omniverse, NVIDIA ShadowPlay, NVIDIA RTX Remix, NVIDIA Ansel, Real-Time Ray Tracing, NVIDIA Reflex, NVIDIA Broadcast |
Graphics Memory
| Memory Size | 32 GB |
| Memory Type | GDDR7 |
| Memory Interface | 512 Bit |
| Memory Clock | 28 Gbit/s / 14,000 MHz |
| Memory Bandwidth | 1,792 GB/s |
Slot
| Slot | PCIe |
| PCIe Version | 5.0 |
| PCIe Lanes | x16 |
| Power Connector | 1 x 12VHPWR (16-pin) |
Dimensions
| Height | 3.8 Slots |
| Length | 35.76 cm |
| Width | 14.93 cm |
| Weight | 3,010 g |
| Low Profile | no |
Video Output
| Interfaces | 3x Display Port, 2x HDMI |
| HDMI Version | HDMI 2.1 |
| DisplayPort Version | DisplayPort 2.1 |
| Max. Resolution | 7680 x 4320 pixels |
| Max. Monitors | 4 |
Cooling & Fans
| Cooling | active |
| Fan Name | ASUS Axial-tech |
| Number of Fans | 4 |
| Fan Color | black |
| Fan Features | Zero RPM, Flow Through, Push-Pull, RGB lighting |
Features
| Suitable for | 4K, Ray Tracing |
| DirectX | 12.2 |
| OpenGL | 4.6 |
| Shader Model | 6.8 |
| Upscaling | DLSS |
| Synchronization | G-Sync |
