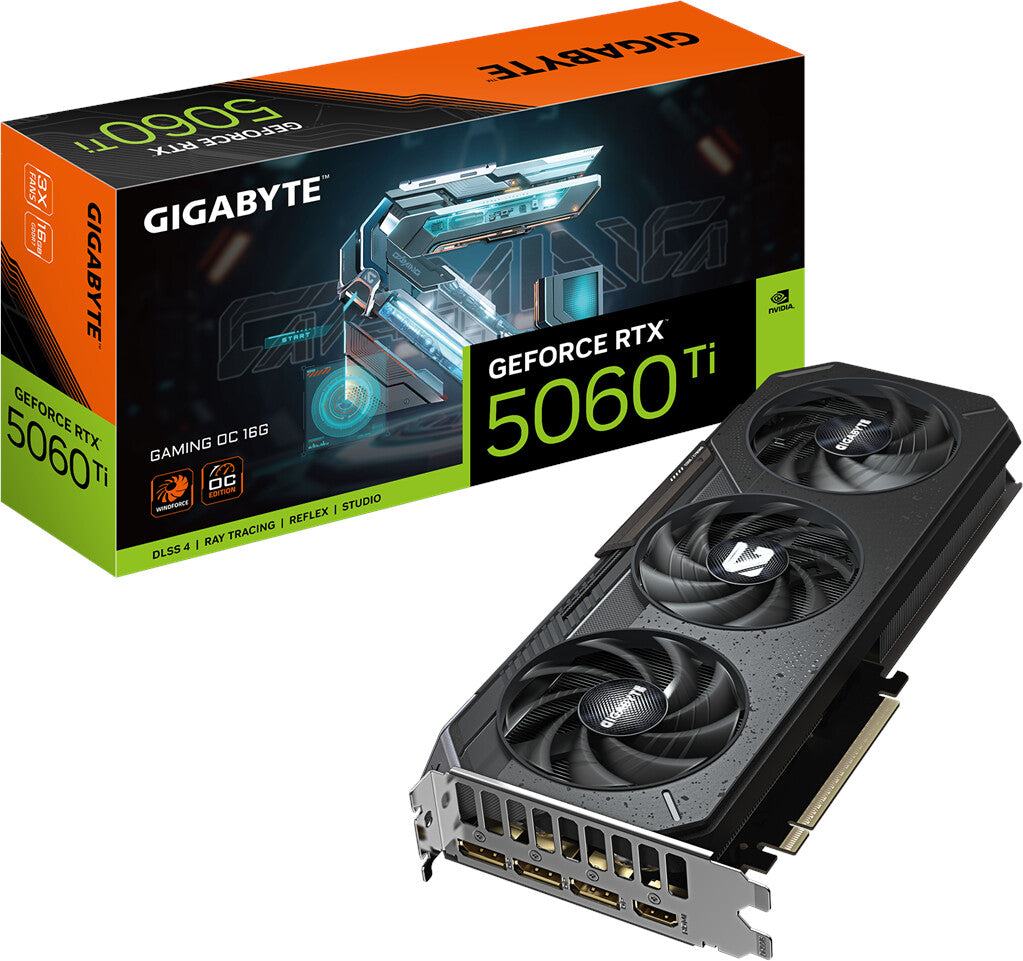

GigaByte GeForce RTX 5060 Ti Gaming OC 16G
€630,00 EUR
Skip to product information
GigaByte GeForce RTX 5060 Ti Gaming OC 16G
€630,00 EUR
Gaming Graphics Card, NVIDIA GeForce RTX 5060 Ti, 4,608 Shader Units, 2,647 MHz, overclocked, 16 GB, GDDR7, 128 Bit, 28 Gbit/s Memory Clock, active cooling, DirectX 12.2, PCIe 5.0 x8, 3x Display Port, 1x HDMI, DLSS Upscaling, G-Sync, Ray Tracing, Dual Bios, 180 W
general
| Product Type | Gaming Graphics Card |
| Series | NVIDIA GeForce RTX 5060 Ti |
| Power Consumption (TDP) | 180 W |
| Dual Bios | yes |
| Color | black |
Graphics Chip
| Chipset Manufacturer | NVIDIA |
| Chipset Codename | Blackwell |
| Chipset Series | NVIDIA GB206 |
| Shader Units | 4,608 |
| Ray Tracing Units | 36 |
| AI Units | 144 |
| Base Clock | 2,407 MHz |
| Boost Clock | 2,647 MHz |
| Overclocked | yes |
| Manufacturing Process | 5 nm |
| L2 Cache | 32 MB |
| Chipset Features | CUDA, NVIDIA Highlights, NVIDIA Freestyle, NVIDIA ShadowPlay, NVIDIA Ansel, NVIDIA RTX Remix, NVIDIA Mosaic Technology, NVIDIA Broadcast, AV1 Encoder, AV1 Decoder, NVIDIA Omniverse, NVIDIA GeForce Experience, Real-Time Ray Tracing, NVIDIA Reflex |
Graphics Memory
| Memory Size | 16 GB |
| Memory Type | GDDR7 |
| Memory Interface | 128 Bit |
| Memory Clock | 28 Gbit/s / 14,000 MHz |
| Memory Bandwidth | 448 GB/s |
Slot
| Slot | PCIe |
| PCIe Version | 5.0 |
| PCIe Lanes | x8 |
| Power Connector | 1 x 8-pin |
Dimensions
| Length | 28.1 cm |
| Width | 11.9 cm |
| Low Profile | no |
Video Output
| Interfaces | 3x Display Port, HDMI |
| HDMI Version | HDMI 2.1 |
| DisplayPort Version | DisplayPort 2.1 |
| Max. Resolution | 7680 x 4320 pixels |
| Max. Number of Monitors | 4 |
Cooling & Fans
| Cooling | active |
| Number of Fans | 3 |
| Fan Color | black |
| Fan Features | Zero RPM, Flow Through |
Features
| Suitable for | Ray Tracing |
| DirectX | 12.2 |
| OpenGL | 4.6 |
| Shader Model | 6.8 |
| Upscaling | DLSS |
| Synchronization | G-Sync |
Other Features
| Scope of Delivery | Graphics Card |
