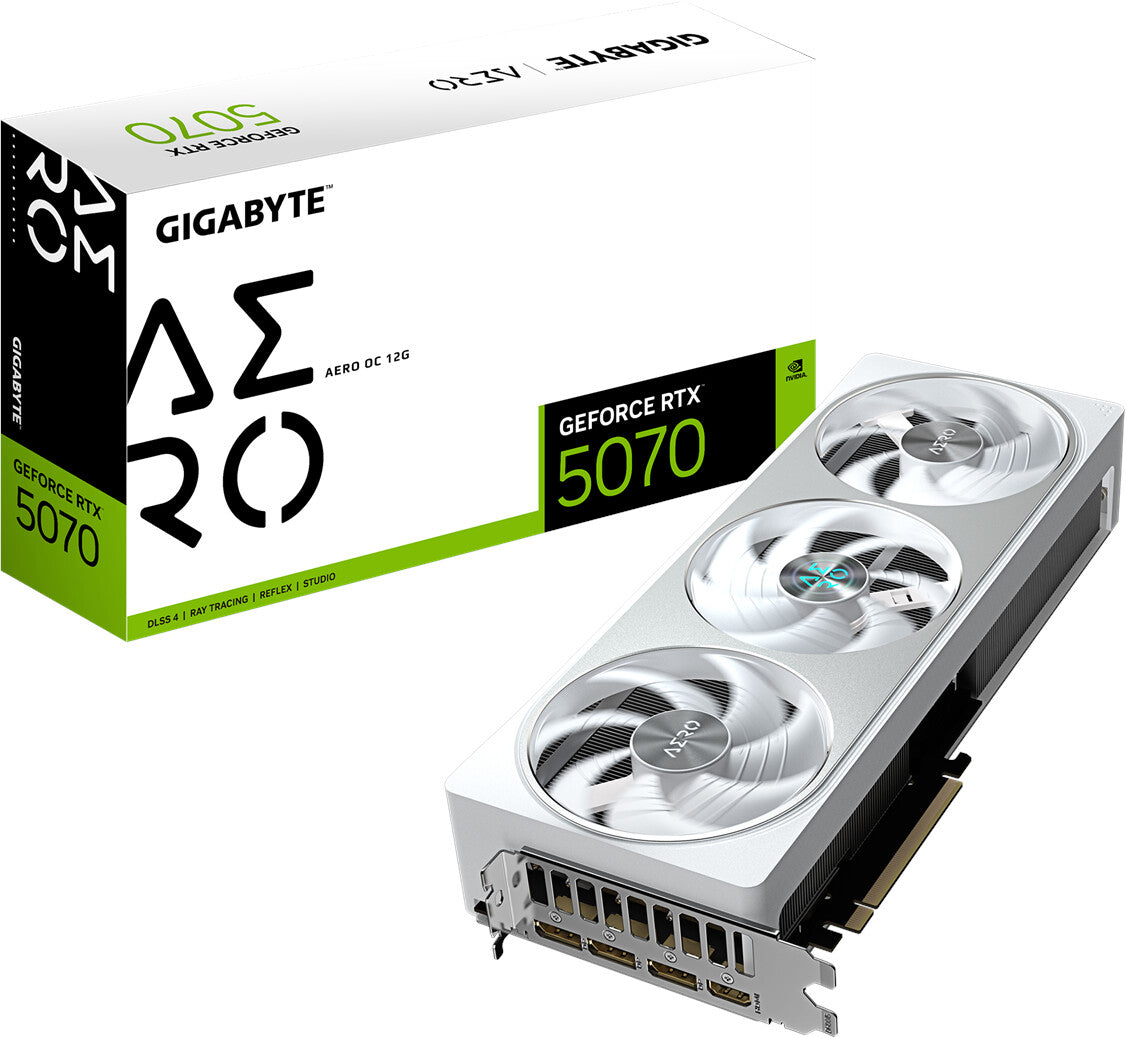

Gigabyte GeForce RTX 5070 Aero OC
€708,00 EUR
Skip to product information
Gigabyte GeForce RTX 5070 Aero OC
€708,00 EUR
Gaming Graphics Card, NVIDIA GeForce RTX 5070, 6,144 Shader Units, 2,625 MHz, overclocked, 12 GB, GDDR7, 192 Bit, 28 Gbit/s Memory Clock, active cooling, DirectX 12.2, PCIe 5.0 x16, 3x Display Port, 1x HDMI, DLSS Upscaling, G-Sync, Ray Tracing, Dual Bios, 250 W
general
| Product Type | Gaming Graphics Card |
| Series | NVIDIA GeForce RTX 5070 |
| Power Consumption (TDP) | 250 W |
| Dual Bios | yes |
| Color | white |
Graphics Chip
| Chipset Manufacturer | NVIDIA |
| Chipset Codename | Blackwell |
| Chipset Series | NVIDIA GB205 |
| Shader Units | 6,144 |
| Ray Tracing Units | 48 |
| AI Units | 192 |
| Base Clock | 2,325 MHz |
| Boost Chip Clock | 2,625 MHz |
| Overclocked | yes |
| Manufacturing Process | 5 nm |
| L2 Cache | 48 MB |
Graphics Memory
| Memory Size | 12 GB |
| Memory Type | GDDR7 |
| Memory Interface | 192 Bit |
| Memory Clock | 28 Gbit/s / 14,000 MHz |
| Memory Bandwidth | 672 GB/s |
Slot
| Slot | PCIe |
| PCIe Version | 5.0 |
| PCIe Lanes | x16 |
| Power Connector | 1 x 12V-2x6 (16-pin) |
Dimensions
| Length | 32.4 cm |
| Width | 13 cm |
| Low Profile | no |
Video Output
| Interfaces | 3x Display Port, HDMI |
| HDMI Version | HDMI 2.1 |
| DisplayPort Version | DisplayPort 2.1 |
| Max. Resolution | 7680 x 4320 pixels |
| Max. Monitors | 4 |
Cooling & Fans
| Cooling | active |
| Number of Fans | 3 |
| Fan Color | white |
| Fan Features | Zero RPM, Flow Through |
Features
| Suitable for | Ray Tracing |
| DirectX | 12.2 |
| OpenGL | 4.6 |
| Shader Model | 6.8 |
| Upscaling | DLSS |
| Synchronization | G-Sync |
