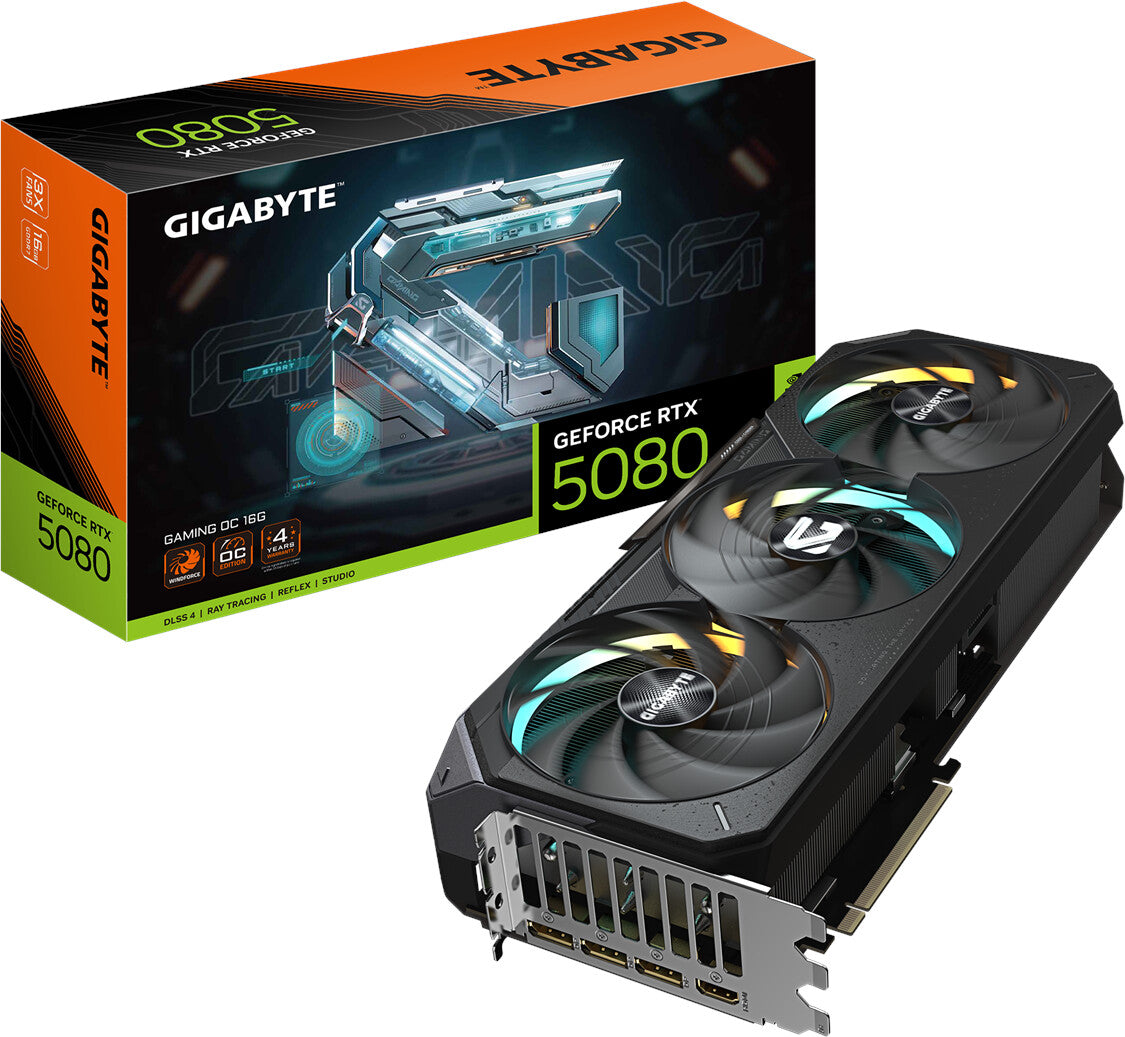

GigaByte GeForce RTX 5080 Gaming OC
€1.359,00 EUR
Gaming Graphics Card, NVIDIA GeForce RTX 5080, 10,752 Shader Units, 2,730 MHz, overclocked, 16 GB, GDDR7, 256 Bit, 30 Gbit/s Memory Clock, active cooling, DirectX 12.2, PCIe 5.0 x16, 3x Display Port, 1x HDMI, DLSS Upscaling, G-Sync, Ray Tracing, Dual Bios, 360 W
general
| Product type | Gaming Graphics Card |
| Series | NVIDIA GeForce RTX 5080 |
| Power consumption (TDP) | 360 W |
| Dual Bios | yes |
| Color | black |
Graphics Chip
| Chipset manufacturer | NVIDIA |
| Chipset codename | Blackwell |
| Chipset series | NVIDIA GB203 |
| Shader Units | 10,752 |
| Raytracing Units | 84 |
| AI Units | 336 |
| Base Clock | 2,295 MHz |
| Boost Clock | 2,730 MHz |
| overclocked | yes |
| Manufacturing Process | 5 nm |
| L2 Cache | 64 MB |
| Chipset Features | CUDA, NVIDIA Freestyle, NVIDIA ShadowPlay, NVIDIA Omniverse, NVIDIA Ansel, NVIDIA RTX Remix, Real-Time Ray Tracing, NVIDIA Reflex |
Graphics Memory
| Memory size | 16 GB |
| Memory type | GDDR7 |
| Memory Interface | 256 Bit |
| Memory Clock | 30 Gbit/s / 15,000 MHz |
| Memory Bandwidth | 960 GB/s |
Slot
| Slot | PCIe |
| PCIe Version | 5.0 |
| PCIe Lanes | x16 |
| Power connector | 1 x 12V-2x6 (16-pin) |
Dimensions
| Length | 34 cm |
| Width | 14 cm |
| Low Profile | no |
Video Output
| Interfaces | 3x Display Port, HDMI |
| HDMI Version | HDMI 2.1 |
| DisplayPort Version | DisplayPort 2.1 |
| max. Resolution | 7680 x 4320 pixel |
| max. Monitors | 4 |
Cooling & Fans
| Cooling | active |
| Number of fans | 3 |
| Fan color | black |
| Fan features | Zero RPM, Flow Through, RGB lighting |
Features
| suitable for | 4K, Raytracing |
| DirectX | 12.2 |
| OpenGL | 4.6 |
| Shader Model | 6.8 |
| Upscaling | DLSS |
| Synchronization | G-Sync |
Other Features
| Scope of delivery | Graphics Card |
