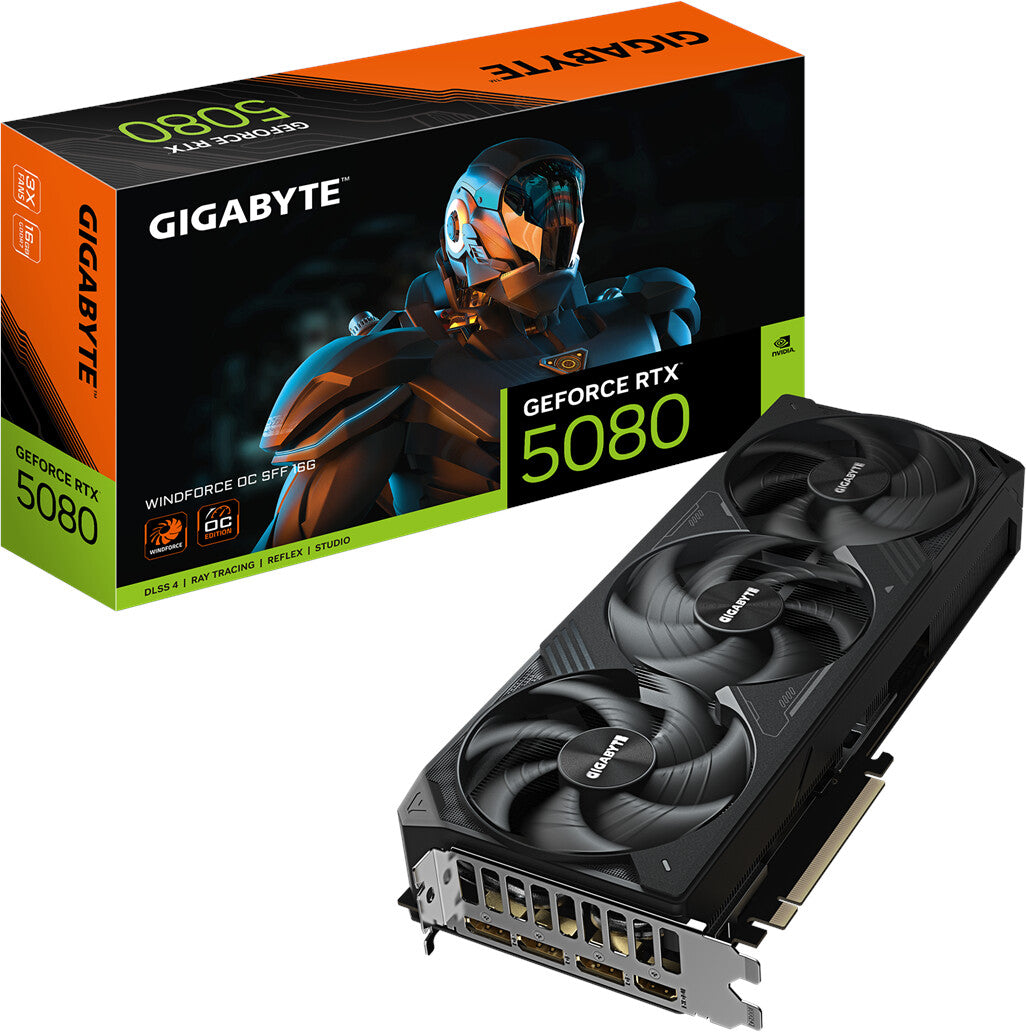

Gigabyte GeForce RTX 5080 Windforce OC
€1.292,00 EUR
Skip to product information
Gigabyte GeForce RTX 5080 Windforce OC
€1.292,00 EUR
Gaming Graphics Card, NVIDIA GeForce RTX 5080, 10,752 Shader Units, 2,670 MHz, overclocked, 16 GB, GDDR7, 256 Bit, 30 Gbit/s Memory Clock, active cooling, DirectX 12.2, PCIe 5.0 x16, 3x Display Port, 1x HDMI, DLSS Upscaling, G-Sync, Ray Tracing, Dual Bios, 360 W
general
| Product type | Gaming Graphics Card |
| Series | NVIDIA GeForce RTX 5080 |
| Power consumption (TDP) | 360 W |
| Dual Bios | yes |
| Color | black |
Graphics chip
| Chipset manufacturer | NVIDIA |
| Chipset codename | Blackwell |
| Chipset series | NVIDIA GB203 |
| Shader units | 10,752 |
| Raytracing units | 84 |
| AI units | 336 |
| Base clock | 2,295 MHz |
| Boost chip clock | 2,670 MHz |
| overclocked | yes |
| Manufacturing process | 5 nm |
| L2 cache | 64 MB |
| Chipset features | CUDA, NVIDIA Freestyle, NVIDIA ShadowPlay, NVIDIA Omniverse, NVIDIA Ansel, NVIDIA RTX Remix, Real-Time Ray Tracing, NVIDIA Reflex |
Graphics memory
| Memory size | 16 GB |
| Memory type | GDDR7 |
| Memory interface | 256 Bit |
| Memory clock | 30 Gbit/s / 15,000 MHz |
| Memory bandwidth | 960 GB/s |
Slot
| Slot | PCIe |
| PCIe version | 5.0 |
| PCIe lanes | x16 |
| Power connector | 1 x 12V-2x6 (16-pin) |
Dimensions
| Length | 30.4 cm |
| Width | 12.6 cm |
| Low profile | no |
Video output
| Interfaces | 3x Display Port, HDMI |
| HDMI version | HDMI 2.1 |
| DisplayPort version | DisplayPort 2.1 |
| Max. resolution | 7680 x 4320 pixels |
| Max. number of monitors | 4 |
Cooling & fans
| Cooling | active |
| Number of fans | 3 |
| Fan color | black |
| Fan features | Zero RPM, Flow Through |
Features
| suitable for | 4K, Raytracing |
| DirectX | 12.2 |
| OpenGL | 4.6 |
| Shader model | 6.8 |
| Upscaling | DLSS |
| Synchronization | G-Sync |
Further features
| Scope of delivery | Graphics card |
