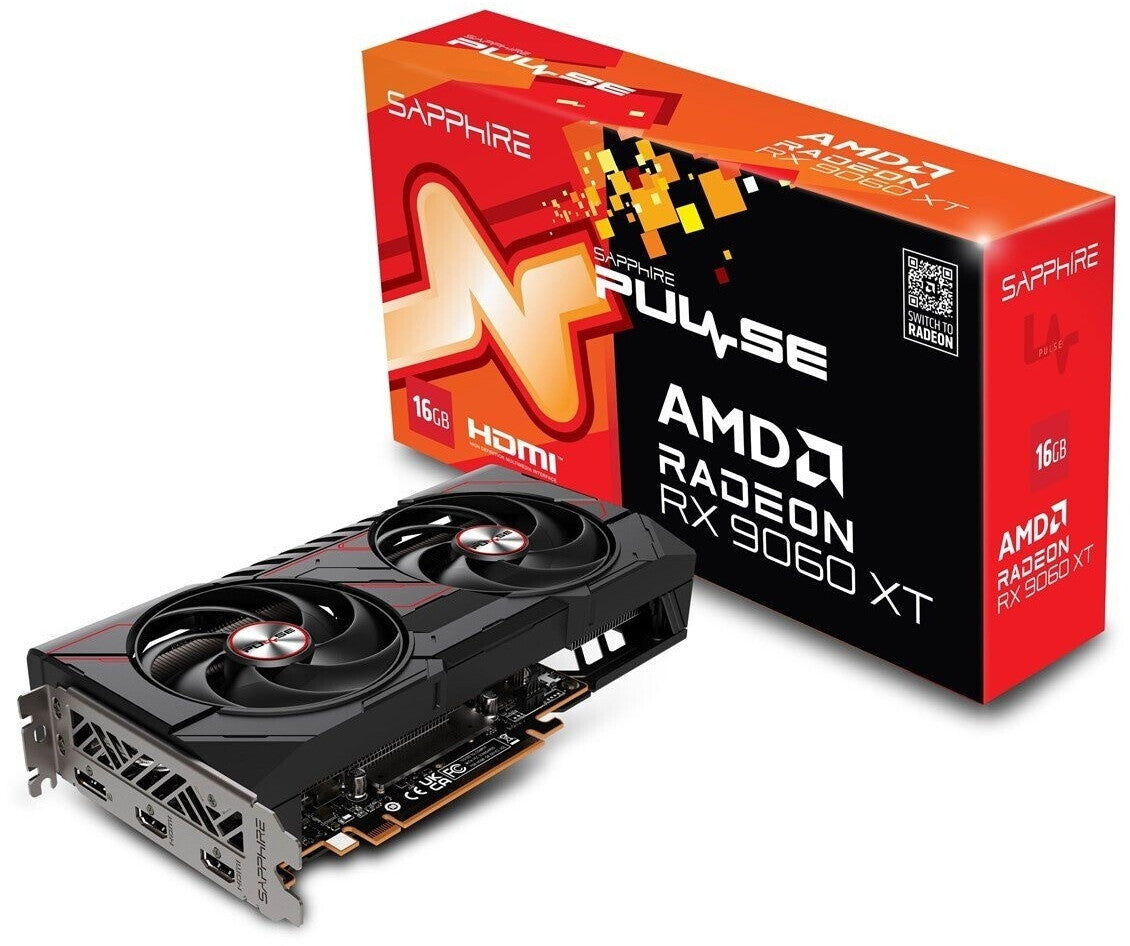

Sapphire Radeon RX 9060 XT Pulse 16G
€435,00 EUR
Skip to product information
Sapphire Radeon RX 9060 XT Pulse 16G
€435,00 EUR
Gaming Graphics Card, AMD Radeon RX 9060 XT, 2,048 Shader Units, 3,290 MHz, overclocked, 16 GB, GDDR6, 128 Bit, 20 Gbit/s Memory Clock, 2.3 Slots, Active Cooling, DirectX 12.2, PCIe 5.0 x16, 1x Display Port, 2x HDMI, FSR Upscaling, FreeSync, Ray Tracing, 170 W
general
| Product Type | Gaming Graphics Card |
| Series | AMD Radeon RX 9060 XT |
| Power Consumption (TDP) | 170 W |
| Dual Bios | no |
| Color | black |
graphics chip
| Chipset Manufacturer | AMD |
| Chipset Codename | RDNA 4 (Navi 4X) |
| Chipset Series | AMD Navi 44 XT |
| Shader Units | 2,048 |
| Raytracing Units | 32 |
| AI Units | 64 |
| Base Clock | 2,250 MHz |
| Boost Clock | 3,290 MHz |
| Overclocked | yes |
| Manufacturing Process | 4 nm |
| L2 Cache | 4 MB |
| L3 Cache | 32 MB |
| Chipset Features | AMD Smart Access Memory (SAM), AMD Radeon Chill, AMD Image Sharpening, AMD Radeon Software, AMD Anti-Lag, AMD Privacy View, AMD Smart Access Video, AMD Radeon Super Resolution, Real-Time Ray Tracing, AMD Enhanced Sync, AMD Noise Suppression, AMD Fluid Motion Frames, AMD Virtual Super Resolution (VSR), AMD Radeon Boost |
graphics memory
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Memory Interface | 128 Bit |
| Memory Clock | 20 Gbit/s / 10,000 MHz |
| Memory Bandwidth | 320 GB/s |
slot
| Slot | PCIe |
| PCIe Version | 5.0 |
| PCIe Lanes | x16 |
| Power Connector | 1 x 8-pin |
dimensions
| Height | 2.3 Slots |
| Length | 24.4 cm |
| Width | 12.4 cm |
| Low Profile | no |
video output
| Interfaces | 2x HDMI, Display Port |
| HDMI Version | HDMI 2.1 |
| DisplayPort Version | DisplayPort 2.1 |
| Max. Resolution | 7680 x 4320 pixel |
| Max. Number of Monitors | 4 |
cooling & fan
| Cooling | active |
| Number of Fans | 2 |
| Fan Color | black |
| Fan Features | Zero RPM, Flow Through |
features
| Suitable for | Raytracing |
| DirectX | 12.2 |
| OpenGL | 4.6 |
| Shader Model | 6.8 |
| Upscaling | FSR |
| Synchronization | FreeSync |
